Why Particle Size Reduction Equipment Determines Process Performance
Particle size reduction equipment is any mechanical system that applies energy to break bulk materials into smaller, more controlled particle distributions, measured by targets such as D50 (median particle size) and D90 (90th percentile particle size).
Common equipment types and their typical particle size ranges:
| Equipment Type | Typical Output Range |
|---|---|
| Jaw / Cone Crushers | 1 mm to 100 mm |
| Hammer Mills | 100 µm to 5 mm |
| Fine Grinders | 44 µm to 500 µm |
| Air Classifying Mills | < 44 µm |
| Jet Mills | 0.25 µm to 15 µm |
| Planetary Ball Mills | Down to 100 nm |
Getting particle size wrong is not a minor quality issue. It is a production bottleneck.
When a D90 target drifts, downstream processes pay the price: dissolution rates fall in pharmaceuticals, reactivity drops in specialty chemicals, and flowability breaks down in food and feed manufacturing. The equipment is only part of the problem. How that equipment is integrated into the process system determines whether you hit your targets consistently or chase them shift to shift.
Increasing surface area is the core reason manufacturers reduce particle size. Smaller particles expose more surface per unit of mass, which directly improves reactivity, bioavailability, mixing uniformity, and product performance across virtually every process industry.
The challenge is that no single machine solves every application. Material hardness on the Mohs scale, heat sensitivity, moisture content, and target particle size distribution all govern which mechanical force and which system design will deliver stable, repeatable output.
Particle size reduction equipment word list:
The Mechanics of Particle Size Reduction Equipment
The principles of size reduction rely on the application of mechanical energy to overcome the internal bonding forces of a solid material. When the applied stress exceeds the material's elastic limit, particle fracture occurs. In industrial environments, this is rarely achieved through a single force. Instead, it is a combination of impact, shear, compression, and attrition.
Impact occurs when a high speed moving element, such as a hammer or pin, strikes a particle, or when a particle strikes a stationary liner. This is the primary force in particle size reduction for friable materials. Shear stress involves a cutting or tearing action, often seen in roll mills or granulators, where particles are caught between two surfaces moving at different speeds. Compression is the squeezing of material between two hardened surfaces, common in primary crushing. Attrition is the "scrubbing" effect where particles rub against each other or the machine surfaces, creating ultra fine fractions through surface erosion.
Achieving D90 Targets with Particle size reduction equipment
Hitting a specific D90 target—where 90% of the particles are below a certain micron size—is a function of tip speed and screen selection. Tip speed, measured in Feet Per Minute (FPM), refers to the velocity at the outermost edge of the rotating grinding element. As FPM increases, the kinetic energy transferred during impact increases exponentially, resulting in a finer grind.

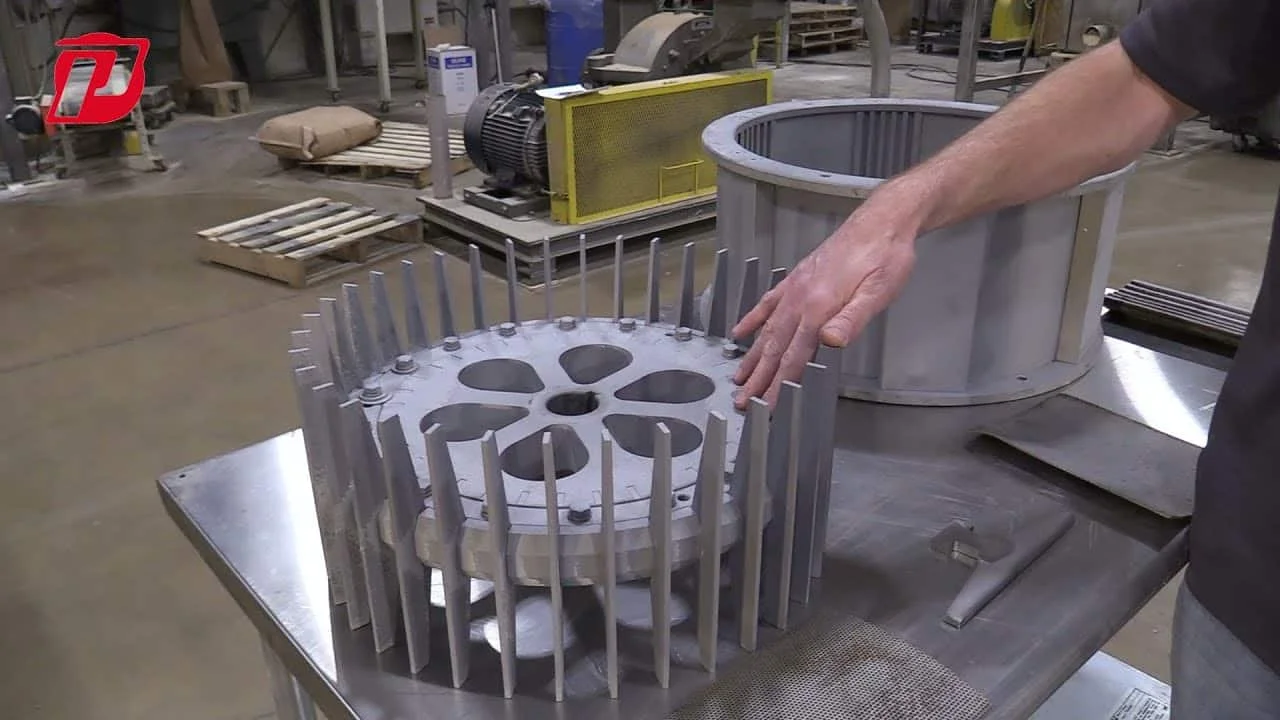

In equipment like fine grinders, the screen open area percentage is equally critical. A common mistake in plant operations is selecting a screen with the right hole size but insufficient open area. This restricts material flow, increases internal heat, and leads to over-grinding or "blinding" (plugging) of the screen. High performance systems utilize 100% of the screen area to ensure that once a particle reaches the target size, it exits the grinding chamber immediately.
Scalability in Particle size reduction equipment Systems
Moving from a laboratory batch to a 24/7 production line requires more than just a bigger motor. Scalability depends on maintaining throughput stability and consistent particle distribution across different machine sizes. If a lab-scale mill produces a D50 of 50 microns at a specific RPM, the production-scale equivalent must be engineered to match the same tip speed (FPM) and air-to-cloth ratios to achieve identical results.
Our comprehensive guide to Prater's particle size reduction equipment highlights that system integration is the key to scalability. A mill that performs perfectly at 50 lbs per hour may fail at 10 tons per hour if the upstream feeding system cannot provide a consistent, metered flow or if the downstream dust collection creates backpressure in the milling chamber.
Mitigating Mechanical Attrition in High-Mohs Material Processing
Mechanical attrition is the inevitable wear of internal components when processing materials with high hardness ratings on the Mohs scale. When handling abrasive minerals or glass-filled polymers, the equipment itself becomes a wear part. To protect the integrity of the system and prevent product contamination, we utilize specialized materials and coatings.
Tungsten carbide tipping on hammers and ceramic liners in high-velocity zones are standard requirements for high-Mohs processing. However, the most effective way to mitigate wear is to manage tip speed (FPM). Running a mill at the lowest possible FPM to achieve the target D90 reduces the impact energy against the machine walls, extending the life of the liners.
Excessive heat generation is a secondary effect of processing hard materials. When mechanical energy is applied to a material that resists fracture, that energy is converted into heat. This can lead to material fusion, where the product softens and coats the internal surfaces of the mill. Managing this requires precise control over the air volume moving through the system to carry away thermal energy before it reaches the material's melting or softening point.
Optimizing Air Classifying Mills for Sub-44 Micron Targets
When the target particle size falls below 325 mesh (44 microns), traditional screening becomes inefficient. In these applications, an Air Classifying Mill (ACM) is the industry standard. These machines combine high speed impact milling with an internal air classifier that rejects over-sized particles back into the grinding zone.
The performance of an ACM is governed by the relationship between the CFM (Cubic Feet per Minute) of air and the Horsepower (HP) of the drive. Prater recommends specific venting and aspiration requirements—typically ranging from 10 to 15 CFM per HP—to ensure proper material transport and cooling.
Technical rules for ACM optimization:
- Internal Cooling Air Volume: The high volume of air required for classification also acts as a massive heat sink. This makes the ACM the preferred choice for heat-sensitive materials like sugar, resins, or powder coatings.
- Cut Point Control: The "cut point" is the size at which the classifier separates fine from coarse. This is adjusted by varying the speed of the classifier wheel relative to the air velocity.
- Aspiration: Proper aspiration prevents dust leakage and ensures that the grinding chamber remains under a slight negative pressure, which aids in drawing material through the classifier mill.
Engineering Efficiency in Industrial Particle size reduction equipment
Efficiency in a milling circuit is rarely about the mill alone; it is about the system. Material flow bottlenecks often occur upstream of the particle size reduction equipment. For example, if you are processing hygroscopic materials that have agglomerated during storage, a lump breaker is necessary to provide a uniform feed size to the secondary mill. Without this, the primary mill faces "slug loading," which causes dramatic spikes in motor amperage and inconsistent particle distribution.
Downstream effects are equally important. If the pneumatic conveying system or cyclone is undersized, air backs up into the mill. This reduces the "pull" through the screens, leading to heat buildup and a drop in throughput. In high-capacity environments, we often integrate the Rotormill, which excels at both grinding and conditioning materials in a single pass, often eliminating the need for separate drying or blending stages.
System integration also means addressing dust containment. A truly efficient system is hermetically sealed or maintained under negative pressure to prevent the loss of high-value fines and to protect the plant environment from combustible dust hazards.
Decision Logic for Equipment Selection
Choosing between a fine grinder and an air classifying mill requires an analysis of the material's physical properties and the desired end-use. While both can produce fine powders, their operational "logic" differs significantly.
| Selection Factor | Fine Grinders | Air Classifying Mills |
|---|---|---|
| Target Size | 44 to 500 microns | < 5 to 150 microns |
| Heat Sensitivity | Moderate (Screen limited) | High (Air cooled) |
| Friability | High (Easy to break) | Low to High |
| Moisture Content | < 1% preferred | Can handle slightly higher via air flow |
| Maintenance | Lower (Fewer moving parts) | Higher (Dual drives/Classifier) |
Key Decision Rule: If target size is <44 microns and heat-sensitivity is high, utilize the ACM for its internal cooling air volume. Fine grinders rely on screens to retain material until it reaches size, which can trap heat. The ACM uses air for both sizing and cooling, making it the safer and more efficient choice for materials with low melting points.
For more detailed comparisons, see our guide on fine grinders vs. air classifying mills.
Frequently Asked Questions about Particle Control
How does tip speed affect final particle size?
Tip speed is the primary variable for controlling the intensity of the impact. In a hammer mill or fine grinder, increasing the RPM increases the tip speed (FPM), which provides more energy to shatter particles into smaller fragments. Generally, doubling the tip speed can result in a significantly finer D90, provided the screen or classifier is adjusted to allow those smaller particles to exit.
What is the relationship between CFM and horsepower in milling?
Airflow (CFM) is the "blood" of a milling system. It carries the material, cools the grinding zone, and facilitates classification. If the CFM is too low relative to the horsepower (HP) being used, the mill will overheat and the throughput will drop because the air cannot "carry" the volume of material the motor is capable of grinding. We typically look for a balance where the air volume is sufficient to keep the temperature rise across the mill below 20-30 degrees Fahrenheit.
When is cryogenic grinding necessary for size reduction?
Cryogenic grinding is required for materials that are extremely heat-sensitive, oily, or "rubbery" at ambient temperatures. By injecting liquid nitrogen or carbon dioxide into the feed, the material is chilled below its glass transition point, making it brittle. Once brittle, it can be easily fractured by particle size reduction equipment that would otherwise only smear or melt the product.
Conclusion
Mastering ultra fine particle control is a balance of physics, mechanical engineering, and process experience. At Prater Industries, we don't just provide machines; we provide applied process knowledge gained from a century of solving plant-floor challenges. Whether you are battling abrasive wear in high-Mohs materials or chasing a sub-10 micron D90, the key to success lies in system uptime and throughput stability.
From the initial material testing to final system integration, every engineering decision we make is designed to ensure your process performs predictably, shift after shift. For those looking to optimize their current separation or grinding circuits, exploring more info about air classifier services is an excellent first step toward achieving precision particle control.
